Truflo ANSI Pump-TNP Series-MagDrive-PTFE Lined
TRFL-TNP-PTFE
Requires Quote
- States: GA, NC, SC, TN, VA
- Summary: ANSI Pumps manufactured in accordance with ANSI/ASME B73.1M, B73.2M, and B73.3M standards. Choose from Horizontal End-Suction, Self-Priming End-Suction, Vertical In-Line, Vertical Sump, Metallic Mag Drive, Non-Metallic Mag Drive.
- Details
- Industry / Applications

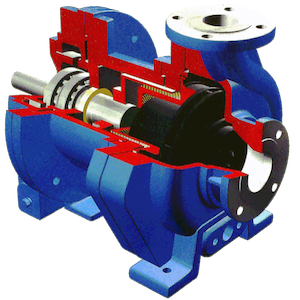

Featured Pump - TruFlo ANSI Pump - TNP Series - Mag Drive - PTFE Lined
PTFE lined Non-Metallic Magnetic Drive Pump – ANSI B73.3 (OH1) for acids and solvents.
Seal-less Design: Magnetically driven seal-less pump with a combination of materials that allow for the mechanical strength of metal and the corrosion resistance of a non-metallic lining.
Non-Metallic: Ductile iron casing lined with a fluoropolymer. Our non-metallic rear containment shell eliminates unwanted "eddy currents" associated with metal designs.
No Alignment or Coupling Required: Our close coupled pump configurations require no alignment as the outer drive magnet connects directly to the motor's drive shaft - thus eliminating the need for a coupling.
- Max. Flow: 930gpm (210m³/h)
- Max. Head: 390ft (120m)
- Max. Temperature: 240°F (120°C)
- Max. Pressure: 230psi (16kg/cm³)
- Max. Power: 150HP (110kW)
Truflo TNP ANSI Pump Applications
- Acetic Acid
- Nitric & Sulfuric Acid
- Ammonia & Bleach
- Caustic Soda
- Hydrochloric & Phosphoric Acid
- Sodium Hypochlorite
- Acetic Acid
- Nitric & Sulfuric Acid
- Ammonia & Bleach
- Caustic Soda
- Hydrochloric & Phosphoric Acid
- Sodium Hypochlorite
