Grundfos DTS Dosing Tank Stations
- States: NC, SC, VA
- Summary: Contact Carotek for Grundfos DTS Dosing Tank Stations, the first choice for economic efficiency when adding liquids as coagulants, disinfectants or neutralizing agents in a precise and controlled way.
- Details
- Industry / Applications
- Steam Services Offered

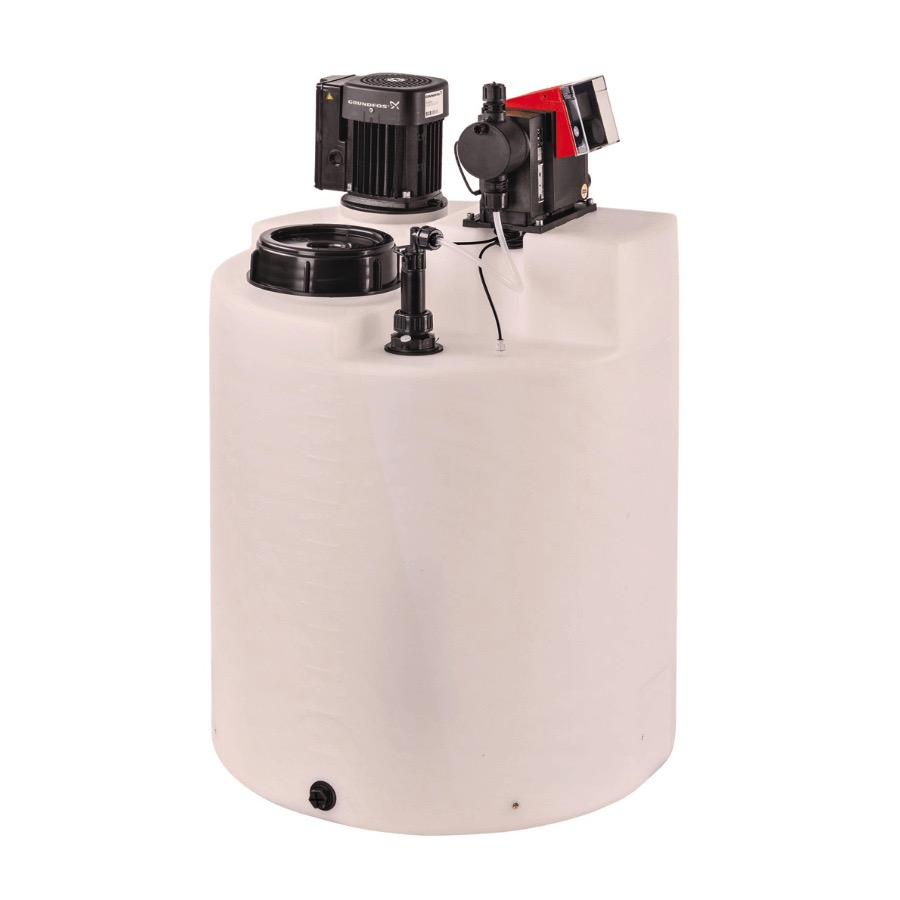

About Grundfos DTS Configurable Dosing Tank Stations
Dosing is precision work, and one of the main tasks in chemical and process engineering as well as water treatment. SMART Digital Dosing pumps deliver an optimal performance in these business fields.
The selection of a dosing pump and the suitable accessories require systematic adjustment to all process parameters.
Easy-to-install Grundfos Dosing Tank Stations are the first choice for economic efficiency when adding liquids as coagulants, disinfectants or neutralizing agents in a precise and controlled way.
Grundfos Dosing Tank Stations are intended for storing and dosing liquid chemicals. Many different configurations can be selected and applied to fulfil various dosing tasks. Due to the use of high-quality materials, Dosing Tank Stations can be used universally for diverse dosing liquids. During configuration, the materials can be selected to suit the liquid and application.
We PACKAGE the benefits of the SMART DIGITAL, DMX and DMH technologies into convenient, plug-and-pump systems.
Key Features & Benefits
- Chemically resistant tank made of UV-stabilized, semitransparent or black polyethylene, in six sizes from 15 to 264 gallons, with embossed liter scale and PE screw cover
- Rigid suction lance or foot valve made of PE, with two-step level switch for dry-running protection, suction line to the dosing pump
- PVC or PP injection unit with 1/2" NPT process connection
- 33-foot PE or PVC discharge line
- Multi-function valve
- Preparation and installation material for assembly of a dosing pump
- Optional PE collecting tray
- Optional handheld mixer or electric mixer with level switch for dry-running protection
- Optional drain valve
- Optional tank inlet valve or dissolving hopper
Dosing pumps are not included in a standard delivery. They can be selected according to application demands from the DDA or DDE ranges and must be ordered separately.
Applications
- Dosing biocides and inhibitors in cooling water
- Dosing lyes and acids for pH regulation
- Dosing coagulants such as ferric (II/III) chloride for wastewater treatment
- Dosing hypochlorite
- Dosing cleaning agents and disinfectants (CIP, cleaning machines)
- Dosing biocides and inhibitors in cooling water
- Dosing lyes and acids for pH regulation
- Dosing coagulants such as ferric (II/III) chloride for wastewater treatment
- Dosing hypochlorite
- Dosing cleaning agents and disinfectants (CIP, cleaning machines)
Whether it is for Industrial heating or cooling, Commercial HVAC, Domestic Hot Water, Humidification, Equipment Washdown, or Water Pressure Boosting, Carotek offers the expertise, products, and services to assess your needs and provide cost effective solutions. We have partnered with industry leading manufacturers such as Armstrong International, Grundfos, Shannon Global Energy, Intellihot, and others to bring you the best product and service results.
We offer
- Decarbonization Roadmaps
- Energy Audits
- Thermal Utility Assessments
- Detailed Thermal Design Engineering
- Steam Trap Surveys
- Steam Trap & Hot Water Monitoring
- Steam System Management (Steam as a Service)
- Thermal System Training - both online and in person
Review these services and contact us for more information.
