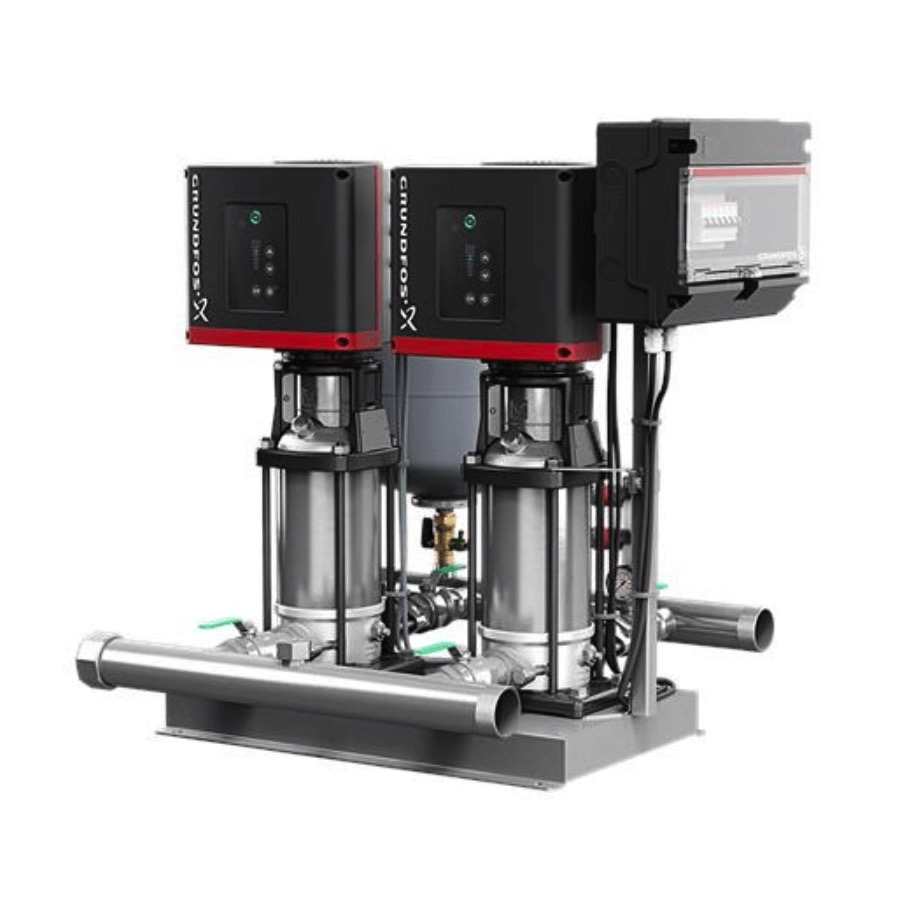

Grundfos Hydro Multi-E Booster Pump System

About Grundfos Hydro Multi-E Multiple Pump System

Grundfos Hydro Multi-E pump systems are ideal for pressure boosting of clean water.

System control interface - advanced control interface installed in one pump. The control interface allows all control variables to be configured or viewed. With addition of flow measuring, system specific energy (kWh/gallon) can be displayed directly from control interface.

Single point power connection - the Hydro Multi-E offers a single point power connection disconnect panel and has individual pump disconnects for servicing pump while Multi-E system is in operation.

100% redundancy - all motors on system are capable of system control. Two sensors are installed as standard resulting in 100% system control redundancy.

Key Features & Benefits

• Redundant master motors
• Redundant sensors
• IE5 motors, two levels above NEMA premium
• GO communication possible
• Customer defined standby pumps
• •2 digital inputs & outputs
• •2 analog inputs
• •Limit exceed functions
• •Optional built in Field-BUS Communication
• •Optional sensor for dry-run protection
• •Pipe filling function
• •External setpoint influence
• •DP control using two sensors, discharge/suction subtraction
• •Predefined setpoint – makes it possible to remotely switch between different predefined setpoints.
• •Pulse flow meter – makes it possible to measure the flow and show specific energy (kWh/gallon)

Attributes:

• 2 or 3 pumps (CRE3 – CRE20)
• Flow max. 460 GPM
• Head max. 475 ft
• Liquid temperature 32°F to 176°F
• Working pressure max. 232 psi

Applications

Water boosting
