Viking Pump Hygienic & Sanitary Rotary Lobe Pumps

VKNG-HGNC-RTRY-LB
Requires Quote
  • States: GA, NC, SC, TN, VA
  • Summary: Viking Pump Hygienic rotary lobe pumps feature non-contacting lobes and large chambers that are able to handle large particles without damage to the pump. Their CIP and SIP capabilities are of the highest standards in the industry.

QTY
  • Videos
  • Details
  • Industry / Applications
PLAYLIST

Wright Flow rotary lobe pumps feature non-contacting lobes and large chambers that are able to handle large particles without damage to the pump. Their CIP and SIP capabilities are of the highest standards in the industry. Wright Flow's state-of-the-art technology sets the standard for high viscosity applications, in line sterilization and simple maintenance.

Viking Pump's Hygienic Rotary Lobe Pumps

Viking Pump has been manufacturing hygienic rotary lobe pumps for over 30 years and is well known for their SteriLobe, Classic+ and RTP pumps. Each pump has unique operating characteristics that lend it to specific applications.

SteriLobe Hygienic Pump

Designed for pharmaceutical applications. Features pulse free flow, is self draining, and made from 316L stainless steel. Robust modular design with ""front loading seals"" and CIP makes this an innovative concept.

Cleanability
    •    Cover joint profile improves hygienic characteristics & self-draining capabilities
    •    Clean & corrosion resistant stainless gear cover & powder coated bearing housing

Maintenance
    •    Front loading seals can be changed while the pump is still in-line
    •    Seal positioned for optimal lubrication, maximizing seal life
    •    Hassle free gearbox maintenance with sealed for life bearings

Performance
    •    Standard bi-wing rotors offer application flexibility & good solids handling capabilities
    •    Multi-lobe rotors reduce shear & pulsation effect; ideal for sensitive media
    •    Innovative cusps with reliefs allow for easier cleaning and self draining with improved efficiency

Specifications
    •    Capacity – 0 to 753 GPM; 0 to 171 m3/h
    •    Pressure – 0 to 218 PSI; 0 to 15 Bar
    •    Temperature – 0 to 300 °F; 0 to 150 °C
    •    Viscosity – 0 to 910,000 SSU; 0 to 200,000 cST

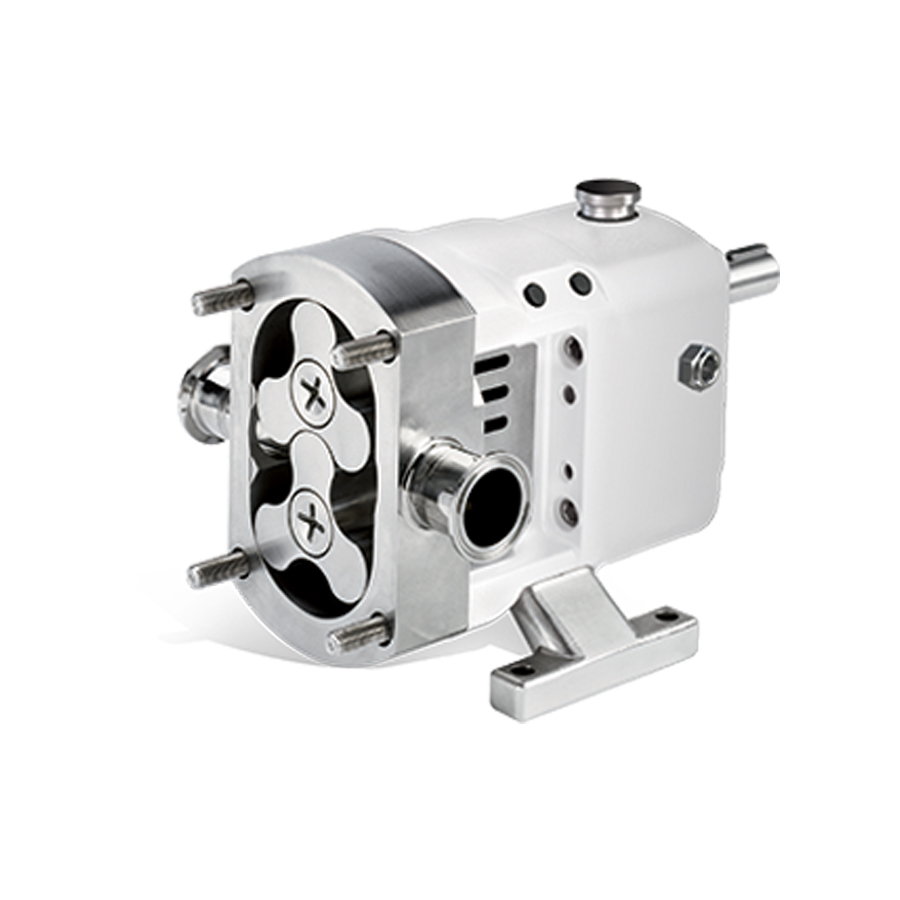

Classic + Hygienic Pump

These pumps offer economical, low sheer action, and dry running capabilities in Tri-lobe and Multi-lobe options in Stainless steel

Cleanability
    •    Modular pump design promotes easy disassembly for COP (Clean Out of Place) & CIP (Clean In Place)
    •    Casing profile cusps maximize efficiency & draining capability

Performance
    •    Timed, non-contacting rotors minimize shear while providing extended run-dry capability
    •    Helical timing gears provide high torque & quieter operation for extended pump life
    •    Tapered roller bearings provide higher operating speeds & better discharge pressures

Maintenance
    •    Removable foot for easier placement
    •    Classic RLP design

Specifications
    •    Capacity – 0 to 832 GPM; 0 to 189 m3/h
    •    Pressure – 0 to 174 PSI; 0 to 12 Bar
    •    Temperature – 0 to 355 °F; 0 to 180 °C
    •    Viscosity – 0 to 910,000 SSU; 0 to 200,000 cST

Loading/Unloading Pumps

RTP Hygienic Pump – Stainless Steel Road Tanker Applications

RTP outperforms the competition by providing higher capacity, higher pressure and unmatched efficiency. The RTP can also reduce loading and unloading time by over 30%. This increased performance, along with advanced durability, application flexibility, ease of installation and ease of maintenance provide a complete solution for your hygienic tanker needs.  Designed specifically for the hygienic stainless steel road tanker industry.

Cleanability
    •    The simple design behind the rotor makes strip cleaning easy and fast
    •    Choose the cleaning process that fits your needs: COP (Clean Out of Place) or CIP (Clean In Place)

Maintenance
    •    Innovative front loading seal design enables quick inspection and easy servicing
    •    Sealed gearcase with long-life lubrication eliminates oil inspection and filling
    •    Easy to service design requires no special tools for disassembly and eliminates need for end clearance adjustments

Performance
    •    Easily handles higher viscosity liquids with improved pressure capabilities for faster unloading
    •    Excellent displacement/weight ratios, meaning more in the tank & less in the cabinet
    •    Precision helical gears, rotors & shaft design, with optimized bearing position, minimize overhung load – extending seal & bearing life

Specifications
    •    Capacity – 0 to 338 GPM; 0 to 76.8 m3/h
    •    Pressure – 0 to 174 PSI; 0 to 12 Bar
    •    Temperature – 0 to 300 °F; 0 to 150 °C
    •    Viscosity – 0 to 910,000 SSU; 0 to 200,000 cST


RTPE Hygienic Pump – Chemical Tanker Applications

RTPe stainless steel pump is designed specifically for the chemical transport industry, far surpassing the cast iron pumps that have long been in use.   RTPe is a cost-effective solution and outperforms the competition in both speed and reliability.  RTPe incorporates all of the features your chemical tanker needs, while eliminating those that it does not. Protect your investment and make your chemical transport business even stronger.

Cleanability
    •    The simple design behind the rotor makes strip cleaning easy and fast
    •    Choose the cleaning process that fits your needs: COP (Clean Out of Place) or CIP (Clean In Place)

Maintenance
    •    Innovative front loading seal design enables quick inspection and easy servicing
    •    Sealed gearcase with long-life lubrication eliminates oil inspection and filling
    •    Easy to service design requires no special tools for disassembly and eliminates need for end clearance adjustments

Performance
    •    Wide range of chemical compatibility
    •    Efficiently handles both low and high viscosity liquids with improved pressure capabilities for faster loading and unloading
    •    Excellent displacement/weight ratios, which means more in the tank and less in the cabinet (1 l/rev. / 0.264 USG/rev.)
    •    Precision helical gears, rotors and shaft design, with optimized bearing position, minimize overhung load – extending seal & bearing life

Specifications
    •    Capacity – 0 to 264 GPM; 0 to 173 m3/h
    •    Pressure – 0 to 145 PSI; 0 to 10 Bar
    •    Temperature – 0 to 230 °F; 0 to 110 °C
    •    Viscosity – 0 to 910,000 SSU; 0 to 200,000 cST
