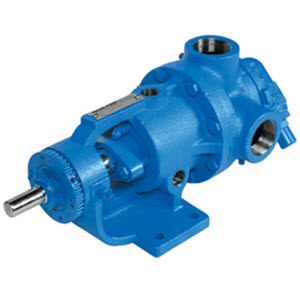

Viking Pump Model HL724 Stainless Steel Gear Pump 4-1412-2612-501
- Note: Contact us for serial number cross reference to model number as well as special job quotes.
- States: GA, NC, SC, TN
- Summary: Viking Pump HL724 Universal - Port 1.5" NPT 90 Degree - Stainless Steel Externals - Standard Packing Seals - FlowMin 0 GPM FlowMax 20 GPM - PressureMax 150 PSI - Relief Valve
- Series: 724 / 4724 Series Viking Universal Pump
- Type: Universal
- Details
- Series Info
- Industry / Applications
- Resource Links
HL724 Viking Motor Speed Pump Specifications
|
Port Size |
1.5” |
|
Port Type |
NPT |
|
Port Orientation |
90 Degree |
|
Externals |
Stainless Steel |
|
Seal Type |
Packing |
|
Seals |
Standard Packing |
|
Flow Min |
0 GPM |
|
Flow Max |
20 GPM |
|
Pres Max |
150 PSI |
|
Valve |
Relief Valve |
|
Gears Rotor Idler |
316SS / 316SS |
|
Shafts |
Stainless Steel |
|
Idler Pin |
Colmonoy Coated |
|
Idler Bushing |
Carbon Graphite |
|
Shaft Bushings |
Carbon Graphite |
724 / 4724 Series Viking Universal Pump Product Line details
These pumps feature 316SS construction for handling corrosive liquid applications. These pumps have additional unique features, however, which separate them from other Viking Pump series. While the wetted components are stainless steel, the footed mounting bracket is cast iron, making the 724 and 4724 Series an economical alternative to a fully stainless steel pump.
Sizes H and larger feature a jacketed bracket for the circulation of steam or hot oil. Optional jacketed head plates (sizes G and larger) and optional jacketed valves (sizes L and larger) are available to add additional jacketing as required.
The small pumps (sizes F, FH & G) are especially useful in pilot plant service, small metering applications, accurate chemical additive processing, pumping of pharmaceuticals in small capacities and for feed and product pumps on evaporators and distillation systems. They are opposite ported and available with packing or mechanical seals. The larger pumps meet the needs of moving corrosive liquids when greater capacities are required in chemical, food and other processing plants. They feature revolvable right angle casings for a variety of port orientations. They are available with packing or behind the rotor mechanical seals.
