Wilden AODD Pump - P4/AAAPP/ZWS/WF/WF
04-13677
MFG #: 04-13677
$1,387.00
$1,387.00
/ EA
- States: NC, SC, VA
- Summary: Wilden AODD Pump - P4 - 04-13677 - 38 mm (1-1/2") Pro-Flo® Series Clamped Aluminum Pump with Santoprene (Wilflex)
- Series: Pro-Flo
- Details
- Industry / Applications

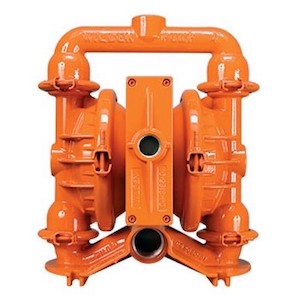

Wilden AODD Pump - P4/AAAPP/ZWS/WF/WF
38 mm (1-1/2") Pro-Flo® Series Clamped Aluminum Pump with Santoprene (Wilflex)
AIR INLET 3/4 FNPTLIQUID INLET 1-1/2 (38MM)LIQUID DISCHARGE 1-1/2 (38MM)CONNECTION TYPE ANSIMAX FLOW RATE PTFE 120 GPMMAX PRESSURE 125 PSIMAX DIAMETER SOLIDS 1/4MAX SUCTION LIFT CAPABILITY PTFE 15.9 DRYDISPLACEMENT PER STROKE RUBBER 0.35 GAL
As part of the Wilden® Pro-Flo® Series of AODD pumps, this pump is designed for basic general industrial applications with good flow, reliability and air consumption. It utilizes a clamped-band design for easy assembly and disassembly. This robust combination is perfect for applications where reliable operation and consistent performance maintenance are required, including dewatering, paint & coatings and ceramics.
Fitted with robust Pro-Flo ADS Clamped connections for fast maintenance Self-priming Dry run without damage Shear-sensitive Longest Mean Time Between Repair (MTBR) Superior anti-freezing Increased On/Off reliability
General Industrial, Oil & Gas, Paints & Coatings, Chemical Process, Hygienic, Water & Wastewater, Mining, Military & Marine, Pharmaceutical, Food & Beverage, Semiconductor and Ceramics.
